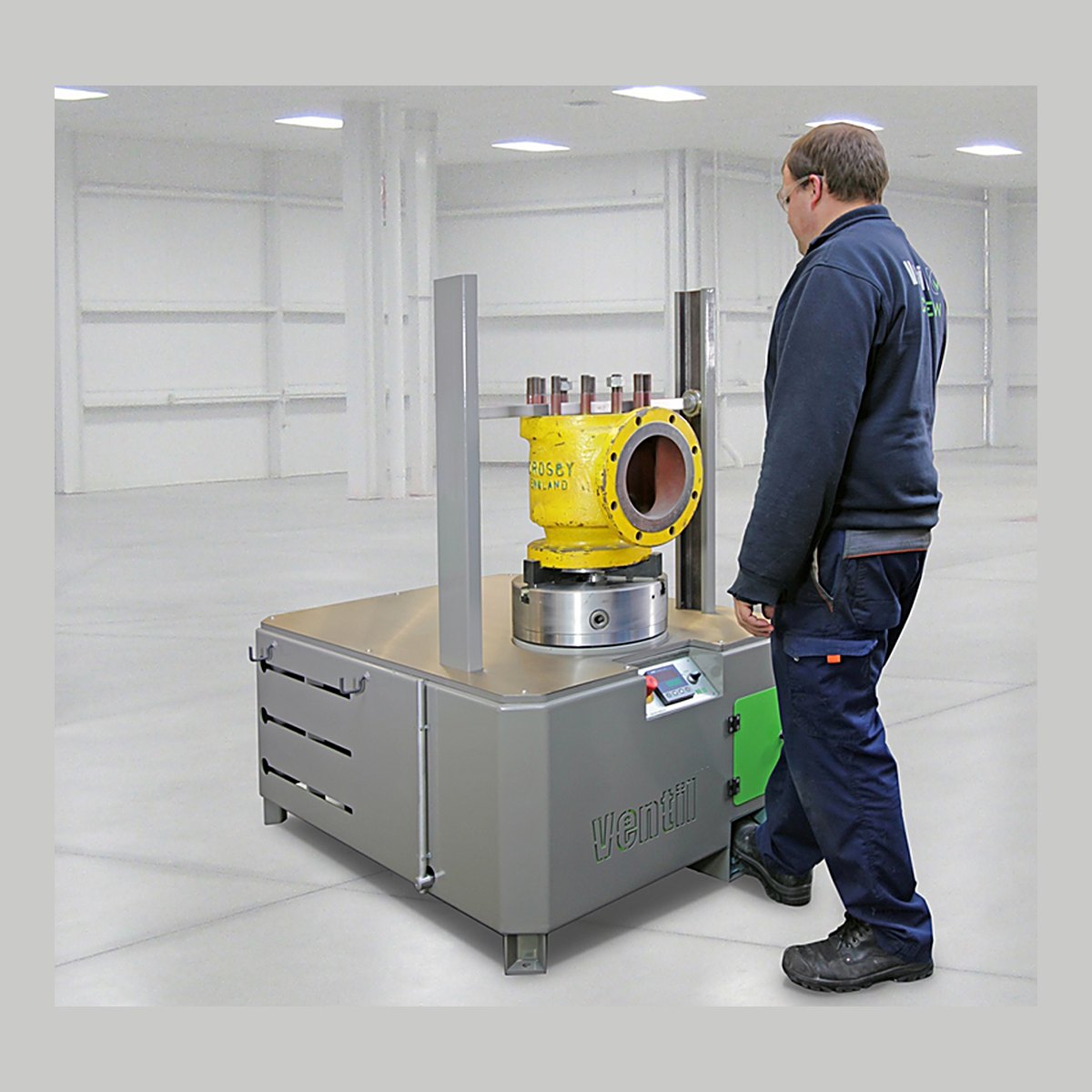

Ventil Pressure Relief Valve Assembly Stand & Nozzle Remover – supplied worldwide by Gulfonex.

• Perfect stand and ridged set-up for easy and safe disassembly of small and large Pressure Relief Valves
• Easy operated, electronic controls for setting of the torque limit and reading of the actual applied force
• Exchangeable, specially hardened steel gripper inserts
• Technical: Range: 1/2-10/ DN15-250mm Claiming diameter: 0-16/ 400mm Nominal/peak torque: 4;900 Nm/9;600 Nm Dimensions: (1) 1.340 x (w) 1.190 x (h) 1.520 mm - 750 kg (l) 52 x (w) 47 x (h) 60 Inch - 1;653 lbs Required connection: 3 ph.380-400v 50hz 32A+ ground + Neutral
• Rectangular shaped retaining beam, suited for the use with small and large stud (bonnet) bolds, in accordance to ASTM A193 B7
• Prior to the overhaul and repair Pressure Relief Valves need to be disassembled and the ‘Nozzle’ insert has to be unscrewed and removed from the valve body. The Ventil NR10 Pressure Relief Valve disassembly stand and Nozzle Remover is the ultimate solution for safe and easy reconditioning of Pressure Relief Valves
• Due to awkward shape and weight, PRV’s are not easy to clamp, while extended force is often needed to loosen and unscrew the parts and disassembly. The Ventil NR10 is the perfect stand (work b

Price on request. Click Request a Quote with your quantity and delivery country – we reply within 48 hours with price, lead time and shipping.
